EcoCube™ Mini Heat Pump | FAQs

EcoCube™ FAQs

What is EcoCube™?

The EcoCube heat pump is designed for small to mid-sized spas to heat their water efficiently and cost-effectively. It uses a little electricity to pull warmth from the air into your spa water, which can cut heating costs by up to 75%. It’s a money-saver and eco-friendly choice for spa owners with smaller pools.


How big is the EcoCube™?

The EcoCube™ has 560x445x495mm dimensions.

Click the button below to view the complete specifications.

How big is the EcoCube™ carton?

The carton size of EcoCube™ is 648x510x568mm.


Does an EcoCube™ cool?

Yes, the EcoCube™ can cool water to 5°C, making it suitable for ice bath applications.

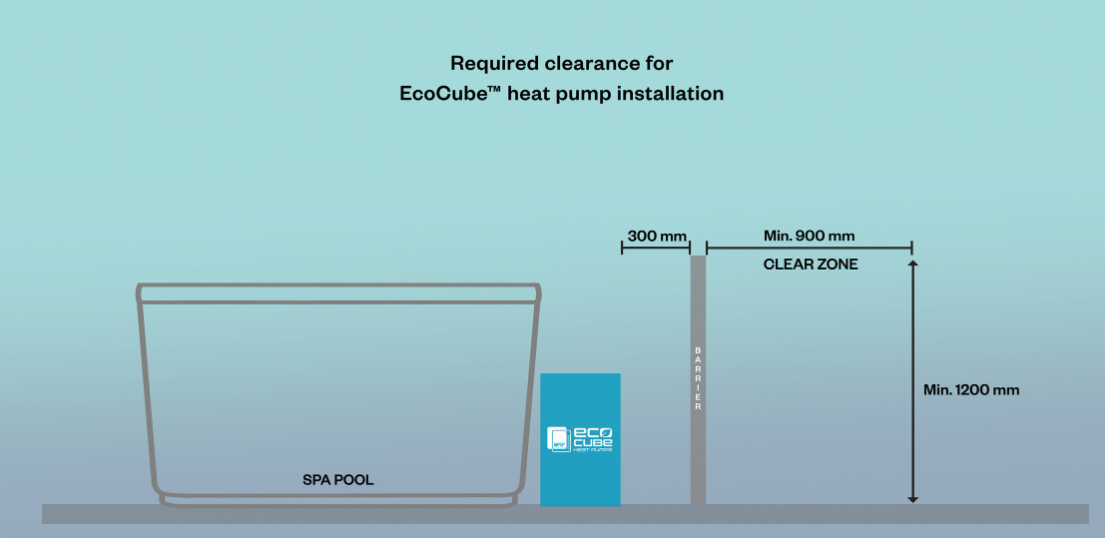

How far can I mount the EcoCube™ from my spa?


EcoCube™ is designed to be installed back to back with the spa. It can be installed further from the spa but this will require a custom installation and hard piping. This is typically completed by a licensed technician. The length of the cable running from the heat pump to the spa controller is no longer than 3m and it must run into the spa and plug into the controller.

Please note: The EcoCube™ must be mounted directly beside the spa when using the connection kit. If it is going to be installed further away, 40mm rigid plumbing will be required. For both types of installations, consideration of the barrier is necessary.

To learn more about what to consider when installing a spa heat pump, please click the appropriate button below.

Australia


Do I need an electrician to install EcoCube™?

Depending on your circumstances, the unit comes fitted with an AMP plug, which is designed to be connected to the power output of the SpaNet™ controller. As a result, no electrician is required to connect the EcoCube to the Spa Pool. However, the SpaNet controller has a limited number of outputs for the EcoCube to plug into. If these outputs are already being used by other components, such as a stereo or light transformer, you can use the AMP double adapter that is included with the EcoCube connection kit. Should you use the double adapter and still not have enough outputs on the controller, you will need an electrician to change the AMP plug to a standard 10-amp plug and locate a suitable power outlet within reach of the EcoCube.

The Fisher™ Spa models compatible with the CHP-33 mini heat pump include the following:
  1. Fisher 2™
  2. Fisher 3™
  3. Fisher 3E™
  4. Fisher 5S™
  5. Fisher  5SE™
  6. Fisher 5™
  7. Fisher 5DE™

The following Fisher™ Spa models are compatible with the CHP-55 mini heat pump:
  1. Fisher 2™
  2. Fisher 3™
  3. Fisher 3E™
  4. Fisher 5S™
  5. Fisher  5SE™
  6. Fisher 5™
  7. Fisher 5DE™
  8. Fisher 6™
  9. Fisher 6E™
  10. Fisher 7™
  11. Fisher 7E™
  12. Fisher 8™


The following Vortex™ Spa models are compatible with the CHP-55 mini heat pump:
  1. Xenon™
  2. Cobalt™
  3. Cobalt HP™
  4. Nitro™
  5. Nitro HP™
  6. Spectrum™
  7. Spectrum HP™
  8. Titanium™
  9. Titanium HP™
  10. IKON™

The Vortex™ Spa models compatible with the CHP-33 mini heat pump include the following:
  1. Gemini™ Spa
  2. Eon™ Spa
  3. Neon™ Spa
  4. Mercury™ Spa

The SN-HP-90P Hybrid heat pump suits all Fisher™ and Vortex™ swim spas and plunge pools, including Vortex™ Palladium™ and Palladium HP™ spa pools.

Here's the list of spa models recommended for the SN-HP-90P Hybrid heat pump.
  1. Palladium™
  2. Palladium HP™
  3. Aqualounge™ Swim Spa (All models)
  4. Aquagym™ Swim Spa (All models)
  5. Aquagym Max™ Swim Spa (All models)
  6. Aqualap™ Swim Spa(All models)
  7. Hydrozone™ Swim Spa (All models)
  8. Fisher Train E™ Swim Spa
  9. Fisher Play™ Plunge Pool
  10. Fisher Swim E™ Swim Spa
  11. Fisher Train™ Swim Spa
  12. Fisher Swim™ Swim Spa
  13. Fisher Lap E™ Swim Spa
  14. Fisher Lap™ Swim Spa

What fencing rules do I need to follow around my spa?

This will depend on the state you reside in. In NSW, as long as you have a locking cover, there is no requirement for fencing. For other states, you may be required to have a safety fence around your spa, and this fence may need to be moved or relocated to allow space for the heat pump. Check with your local council to confirm your fencing and compliance obligations, or you can consult our compliance team for assistance.

For a detailed explanation of state-specific fencing requirements for your spa, please refer to the article below.
