How to perform the Obstruction Detection calibration for the ClearLift™ cover
What’s the purpose of Obstruction Detection for the ClearLift™ cover?
Obstruction detection for the ClearLift™ cover is a safety feature that is designed to prevent the cover from closing if it detects any obstructions or objects in its path. The system uses sensors or pressure-sensitive mechanisms to detect if there is something obstructing the proper closing or operation of the spa cover.
How to perform the Obstruction Detection calibration for the ClearLift™ cover
Here are the step-by-step instructions for calibrating the obstruction detection feature.
Please note: Before doing the obstruction detection calibration, please make sure that you have completed the positional calibration.
Important reminders:
- Must make sure the cover is clear and unobstructed prior to performing the obstruction detection calibration.
- This should be done in minimal wind. If it's windy, reschedule the calibration for a calm day. Otherwise, the obstruction detection profile will be affected.

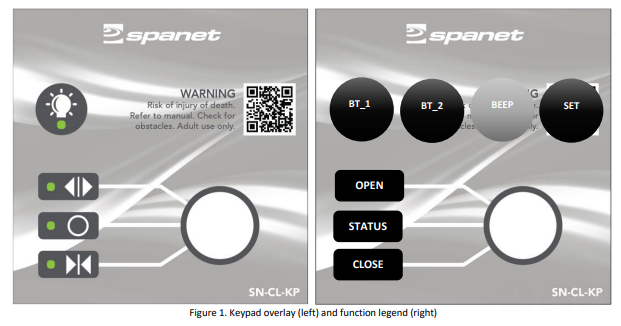

Step 1: Press and hold buttons BT1 and BT2 on the Clearlift™ control panel (so the button with the lightbulb graphic, and the hidden button next to it) for 3 seconds. Then, the status LED will flash purple.
Step 2: The cover will open and close three times automatically with no key switch input.
Step 3: After the cover has completed its three open and close cycles, the LED will change to blue. This indicates that the calibration process is complete.
